A smoke alarm watches for particles produced by a fire. Most household units use either a photoelectric chamber that detects scattered light or an ionization chamber that detects a change in electric current. When the sensor signal crosses its designed threshold, electronics activate the sounder and any interconnected warnings.

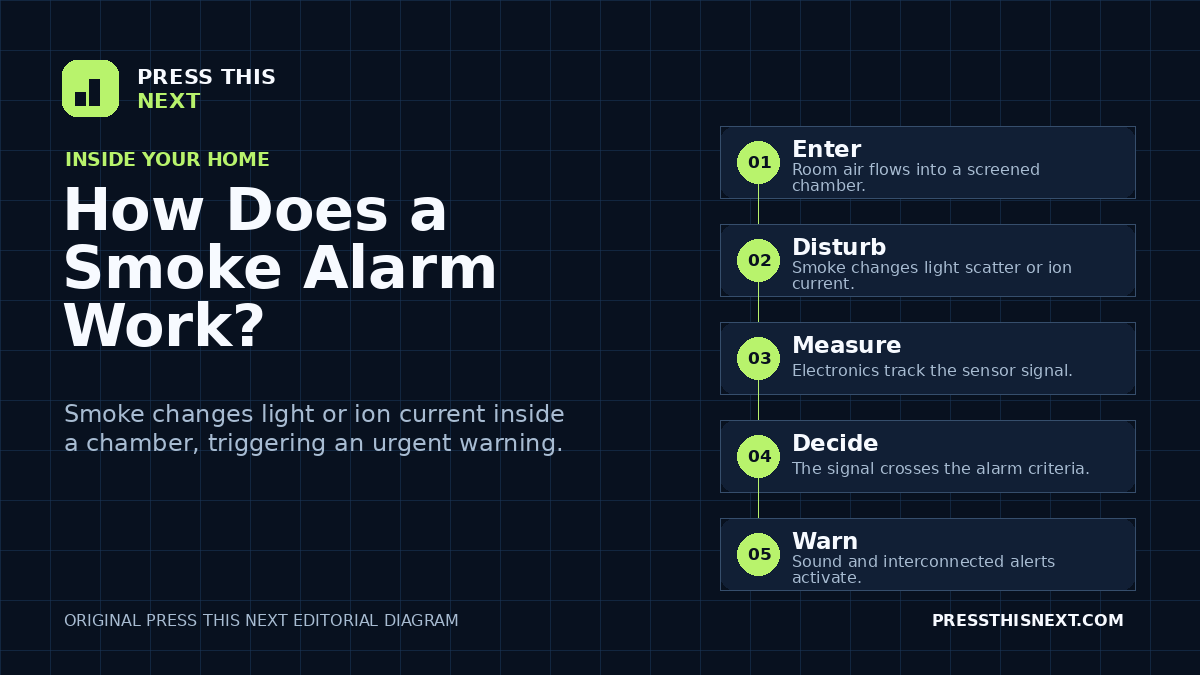

What happens in five steps
1. Air reaches a sensing chamber
Openings in the alarm allow room air to enter while screens and chamber geometry limit insects, dust, and direct ambient light. Smoke does not need to fill the room completely. Rising and spreading fire products must reach the alarm in enough concentration for its sensing method and programmed response.
2. The chamber monitors a stable condition
A photoelectric alarm shines a small light beam inside a dark chamber so little light normally reaches the sensor. An ionization alarm uses a tiny sealed amount of americium-241 to ionize air between charged electrodes, creating a small, stable current. Both designs establish a normal reference.
3. Smoke changes the sensor signal
In a photoelectric chamber, smoke particles scatter some beam light onto the photodetector. In an ionization chamber, particles attach to ions and reduce their mobility, lowering the current. Different particle sizes and fire conditions can make one technology respond sooner than the other in a particular test.
4. Electronics decide when to alarm
The circuit measures the changing optical or electrical signal and compares it with response criteria. Modern designs may use multiple measurements and algorithms to reduce nuisance alarms while maintaining required fire response. The test button normally checks electronics, battery, and sounder; it does not reproduce every real smoke path.
5. The alarm warns occupants
A loud sounder activates, and units designed for accessibility may flash lights or trigger a bed shaker. Interconnected alarms send a signal so units elsewhere also sound. That early warning is useful only if people recognize it, leave promptly, stay outside, and call emergency services from safety.
Photoelectric and ionization are not identical
Photoelectric alarms have historically responded well to many smoldering-fire conditions, while ionization alarms have often responded quickly to some flaming-fire conditions. Real fires vary, and placement, airflow, fuel, nuisance resistance, age, and applicable standards matter. The U.S. Fire Administration recommends protection that accounts for both kinds of fire, using appropriate listed alarms and local requirements.
A combination alarm can contain both smoke-sensing technologies. A combination smoke-and-carbon-monoxide alarm detects two different hazards with separate sensors. The word “combination” on a package should therefore be read carefully rather than assumed to mean dual smoke sensors.
What a smoke alarm does not detect
A smoke alarm is not automatically a carbon-monoxide alarm, natural-gas detector, heat detector, or general air-quality monitor. Carbon monoxide is colorless and does not reliably create the particles a smoke sensor is designed to recognize. Homes with combustion risks need correctly located CO alarms that meet applicable guidance in addition to smoke alarms.
Why cooking and steam can trigger it
Cooking aerosols can resemble fire particles, and dense steam or dust can scatter light. A nuisance alarm is evidence that the chamber received a strong signal, not proof the unit is defective. Check first for fire, use a listed hush feature if conditions are safe, improve ventilation, and follow placement instructions. Never remove the battery or cover the alarm as a routine solution.
How smoke alarms are powered and connected
Some alarms use replaceable batteries, some use sealed long-life batteries, and hardwired units connect to building power with battery backup. Interconnection can use wiring or a compatible radio link. Products are not universally interoperable, so additions and replacements must follow manufacturer compatibility instructions and local code.
Why placement changes warning time
Smoke rises and then spreads across ceilings, but closed doors, tall spaces, ventilation, drafts, dead-air pockets, and fire location affect travel. U.S. fire-safety guidance calls for alarms inside every sleeping room, outside each separate sleeping area, and on every level, including the basement. Exact mounting distances and locations should follow the product instructions and local authority.
Testing and replacement are part of the system
The U.S. Fire Administration advises monthly testing and replacement of the complete smoke alarm ten years from its manufacture date. Battery schedules depend on the design; sealed units are replaced as specified rather than opened. Dust should be removed only as the manufacturer directs. A chirp can signal low battery, end of life, or a fault, so identify the model’s pattern rather than ignoring it.
Is the radioactive material dangerous?
Ionization alarms contain a very small, shielded americium-241 source. The U.S. Environmental Protection Agency states that these alarms are safe when used as intended. Do not open, crush, burn, or tamper with one. Disposal requirements can vary, so follow the manufacturer and local waste authority.
A fire safety boundary
If an alarm sounds, treat it as a possible fire. Get everyone outside, stay outside, and call emergency services. Do not delay escape to investigate smoke in another room or retrieve property. Alarms reduce risk but do not extinguish fires, replace an escape plan, or guarantee that every person will wake without accessible alerting equipment.
The useful mental model
A smoke alarm is a particle-triggered messenger. Air enters, smoke changes a carefully monitored optical or electrical condition, the circuit recognizes a dangerous pattern, and the sounder buys occupants time to escape.
