An all-electric car stores electrical energy in a high-voltage traction battery. Power electronics control that energy and feed one or more electric motors, which convert it into torque at the wheels. An onboard charger manages AC charging, while regenerative braking can return part of the car’s motion energy to the battery. Software, cooling, protection, and a lower-voltage system coordinate the entire vehicle.

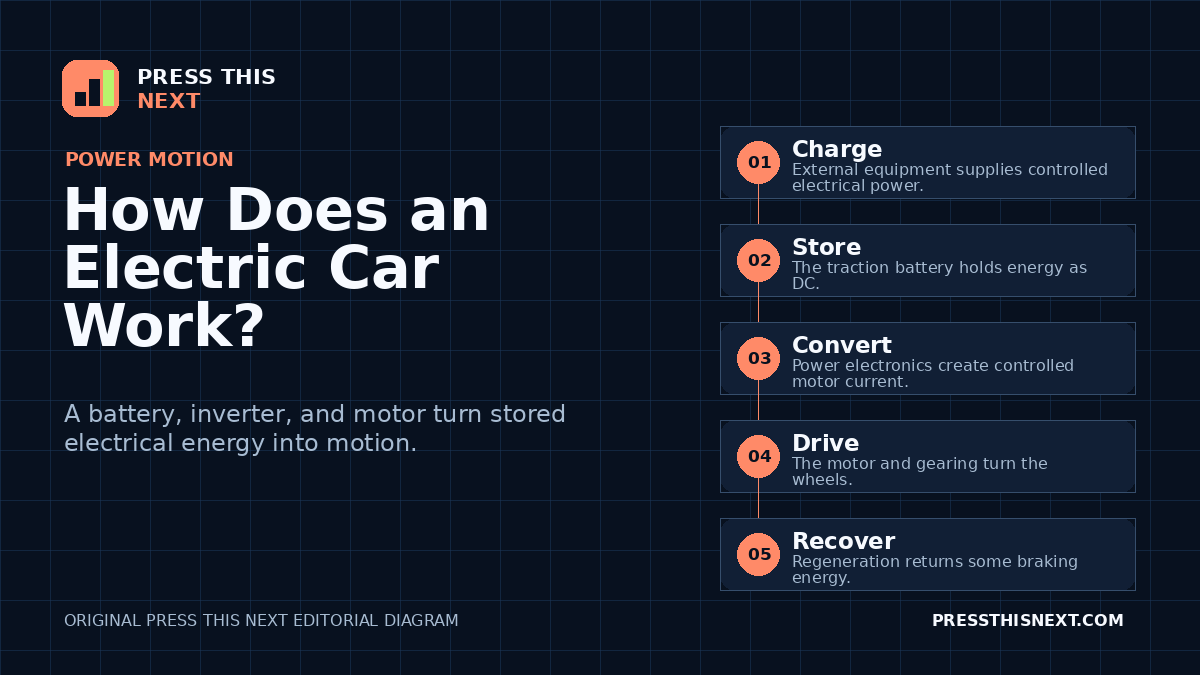

What happens in five steps
1. The car connects to charging equipment
The charge port links the vehicle to electric-vehicle supply equipment. That equipment provides power safely and communicates available current; it is not necessarily the charger itself. For AC charging, the onboard charger converts incoming AC to controlled DC. During compatible DC fast charging, external equipment supplies regulated DC more directly to the battery system.
2. The traction battery stores energy
Hundreds or thousands of electrochemical cells are arranged into modules and a pack. A battery-management system monitors cell voltages, current, insulation, temperature, and state of charge. Contactors connect the pack only when checks pass. The principles are related to how batteries work, but an automotive pack adds extensive sensing, structure, cooling, and fault protection.
3. Power electronics meter energy
When the driver requests torque, a controller draws DC from the pack. An inverter switches that DC into controlled multiphase AC for many traction motors. A DC-to-DC converter also lowers high pack voltage to support lights, computers, pumps, and the conventional low-voltage battery. The controller changes current and frequency many times per second.
4. The motor turns the wheels
Magnetic fields in the stator and rotor interact to produce torque, following the foundation described in how an electric motor works. A reduction gear trades motor speed for wheel torque. Most electric cars do not need a many-speed transmission because the motor can operate over a broad speed range and deliver strong torque from low speed.
5. Braking can recover some energy
When the driver slows, the controller can make the traction machine act as a generator. Wheel motion then produces electrical energy that flows back toward the battery, subject to grip, temperature, state of charge, and power limits. Friction brakes still provide stopping power, emergency braking, holding, and the portion regeneration cannot handle.
The main systems in an electric car
- Traction battery: stores high-voltage DC energy.
- Charge port and onboard charger: receive external power and manage AC charging.
- Inverter and controller: regulate energy sent to or recovered from the motor.
- Traction motor and reduction gear: create torque and transfer it to the wheels.
- DC-to-DC converter: supplies the lower-voltage electrical system.
- Thermal system: controls temperatures in the battery, cabin, motor, and electronics.
What the accelerator pedal controls
The pedal is an electronic request rather than a direct fuel valve. Redundant sensors report position to control software. The vehicle then considers battery limits, traction, motor temperature, selected drive mode, wheel speed, and stability-control commands before setting motor torque. Because magnetic torque changes quickly, software can shape a smooth response or intervene when a tire begins to slip.
How regenerative braking blends with friction brakes
Regeneration cannot capture all motion energy. Conversion losses turn some into heat, and the battery may accept less power when it is cold, hot, nearly full, or fault-limited. At low speed or during a hard stop, friction brakes supply more of the demand. A blended system coordinates both so pedal feel and stopping remain predictable. The energy path is explained further in how regenerative braking works.
What determines driving range
Usable battery energy and vehicle efficiency set the starting point. Speed, acceleration, hills, payload, tire pressure, rain, wind, road surface, and cabin heating or cooling change energy use. Aerodynamic drag rises strongly with speed, so sustained fast highway driving can consume more energy per mile. Cold conditions can slow battery chemistry and increase heating demand; very hot conditions can increase cooling demand.
Why charging time varies
Charging time depends on energy needed, the car’s maximum acceptance rate, the charger’s capability, battery temperature, and the charging curve. Fast charging is usually quickest at a moderate state of charge and tapers as the pack fills to protect cells and control heat. A station’s advertised maximum is not a promise that every vehicle will draw that power continuously.
Why the vehicle manages temperature
Cells, motors, and transistors work best within designed temperature bands. Pumps circulate coolant through plates or jackets; radiators, chillers, heaters, and heat pumps move thermal energy where needed. Before fast charging, some cars precondition the pack. Cabin conditioning also draws from stored energy, although heated seats or zoned controls can sometimes warm occupants with less energy than heating all cabin air.
No tailpipe does not mean no environmental impact
A battery-electric car has no combustion tailpipe, fuel tank, or engine exhaust during driving. Electricity generation, vehicle production, mining, tire wear, road wear, and end-of-life processing still have environmental effects. The size and source of those effects vary by vehicle, power mix, use, and analysis boundary. Tailpipe classification and whole-life impact answer different questions.
Battery electric, hybrid, and plug-in hybrid
A battery-electric vehicle relies on external electricity and electric traction. A conventional hybrid combines an engine with an electric motor and charges its smaller battery through the engine and regeneration. A plug-in hybrid can charge externally and travel some distance electrically before or while using an engine. These architectures should not be treated as interchangeable.
High-voltage safety
Orange cables and high-voltage components are not user-serviceable. The pack can retain dangerous energy after a crash or shutdown, and damaged lithium-ion cells can ignite later. Follow the owner’s manual for charging and towing, use listed charging equipment installed for the circuit, and keep recalled or damaged equipment out of service. Emergency responders and qualified technicians use vehicle-specific isolation procedures.
The useful mental model
Think of an electric car as an energy loop with careful gatekeepers. The charger fills a chemical reservoir, power electronics meter energy into magnetic torque, gears turn the wheels, and deceleration can send part of the motion back through the same electrical path for storage.
