An induction cooktop does not heat a glowing element and wait for that element to warm a pan. Electronics send alternating current through a coil below the glass. Its changing magnetic field induces currents in compatible cookware, and the electrical resistance of the pan converts that energy into heat. The hot pan then cooks the food.

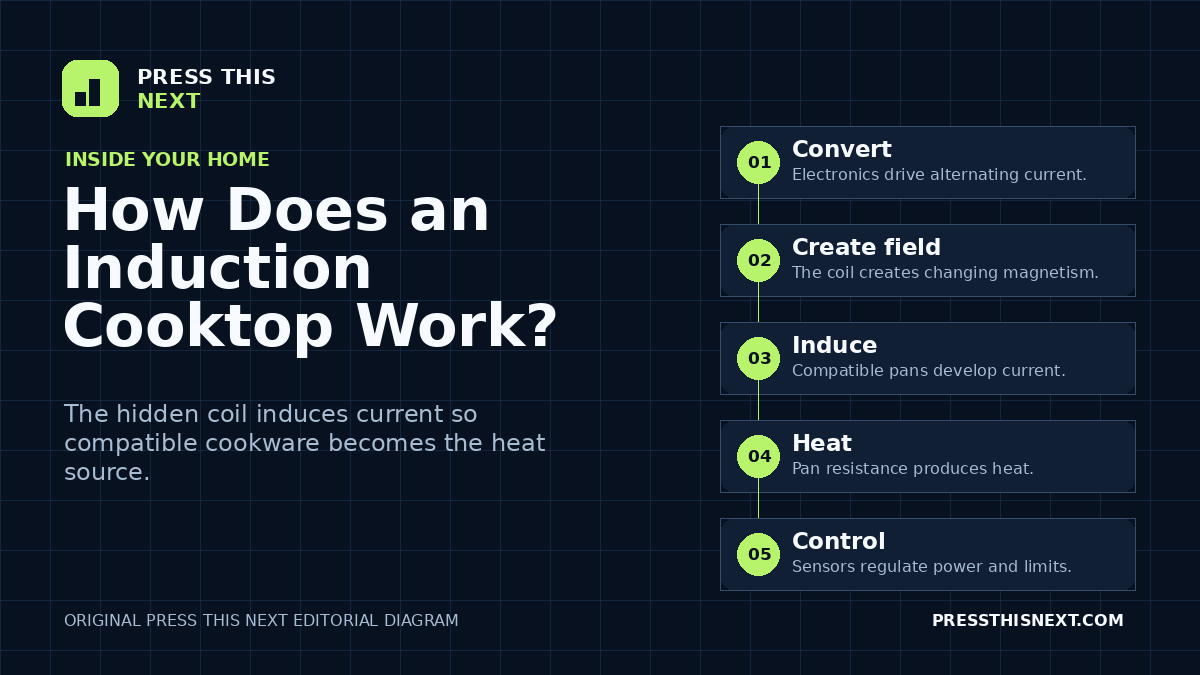

What happens in five steps
1. Power electronics create high-frequency current
Household alternating current first enters control and power-conversion circuits. When a cooking zone is enabled, switching electronics produce a controlled alternating current for a flat copper coil beneath the ceramic-glass surface.
2. The coil creates a changing magnetic field
As the current reverses rapidly, the magnetic field around the coil also changes. The glass is electrically insulating and is not the intended heat source, so the field can couple with a suitable pan above it.
3. The field induces current in the cookware
A compatible ferromagnetic base gives the changing magnetic flux an effective path. The field induces circulating electrical currents in the metal. The pan’s resistance converts their electrical energy into thermal energy. Magnetic losses in suitable material can also contribute.
4. The pan transfers heat to the food
Heat conducts through the base and sides of the cookware. Within liquids and many foods, convection circulates energy. The pan is therefore the immediate heat source, even though the cooktop supplies the electrical energy that produces it.
5. Sensors and controls adjust the power
The cooktop monitors commands and operating conditions. Designs can detect suitable cookware, vary switching power, manage cooling fans, limit component temperature, and stop a zone when a pan is removed or an abnormal condition is detected.
Why cookware compatibility matters
The base must interact strongly enough with the magnetic field. Cast iron and many magnetic steels work; aluminum, copper, glass, and some stainless steels do not work by themselves. A layered pan can combine a magnetic outer base with other heat-spreading materials.
A simple screening test is to see whether an ordinary magnet sticks firmly to the flat bottom. That is useful but not a complete performance rating. Base diameter, flatness, material layers, and the cooktop’s detection limits also matter. Follow both manufacturers’ compatibility and size guidance.
Why the glass can still become hot
The field is intended to heat the pan rather than the glass, but the hot pan sits directly on the surface and conducts heat back into it. Spilled food and nearby areas can therefore become hot enough to burn. Residual-heat indicators should be taken seriously, and a powered-off zone is not immediately a cool zone.
Why induction responds quickly
The control circuit can change the field and the induced power without first heating or cooling a massive burner. Removing the pan interrupts the main energy-transfer path. At low settings, some cooktops pulse between power levels rather than delivering perfectly continuous heat, so behavior varies by design and cookware.
Direct coupling can reduce heat lost around the pan and often improves cooking efficiency compared with less direct methods. Exact efficiency and boiling time depend on pan size, food load, control setting, alignment, test method, and appliance design; no single percentage describes every meal.
Why it can hum, click, or buzz
Changing magnetic forces and current can make cookware layers vibrate. Power electronics, relays, and cooling fans can add sound. A faint hum or cycling sound may be normal, especially at high power or with layered pans. A new harsh noise, burning smell, error code, cracked surface, or repeated shutdown calls for the manual and qualified service rather than disassembly.
It is not wireless energy filling the kitchen
The useful coupling is concentrated between the coil and nearby cookware. Moving the pan away sharply weakens the interaction. The technology is related to electromagnetic induction used in transformers, motors, and wireless charging, but the geometry, power level, control system, and intended load are different.
Important safety boundaries
Use cookware that is stable, undamaged, and approved for the appliance. Keep the glass dry and free of hard particles that could scratch it, and never cook on a cracked surface. Do not place cutlery, lids, cans, foil, or other unintended metal on an active zone. Keep magnetic cards and sensitive items away as the manual directs.
People with implanted or body-worn medical devices should follow the device manufacturer’s advice and consult their healthcare professional about electromagnetic environments. General statements about induction cannot replace model-specific electromagnetic-compatibility guidance.
How pan detection can work
Before delivering full power, the electronics can apply a small test signal and observe how the coil’s electrical behavior changes. A suitable pan changes the effective impedance seen by the circuit. The controller can then permit heating, reject an unsuitable object, or report that the pan is too small or poorly positioned.
The useful mental model
Picture the cooktop as the first half of a transformer and the pan as the responsive second half. The coil creates a changing field, the pan develops current, and the pan’s own electrical resistance turns that current into cooking heat.
