Solar panels make electricity when semiconductor cells absorb light and separate mobile electric charges. Conductive contacts collect those charges as direct current. A complete photovoltaic system then combines many cells, manages their operating point, and usually uses an inverter to create the alternating current required by a building or grid.

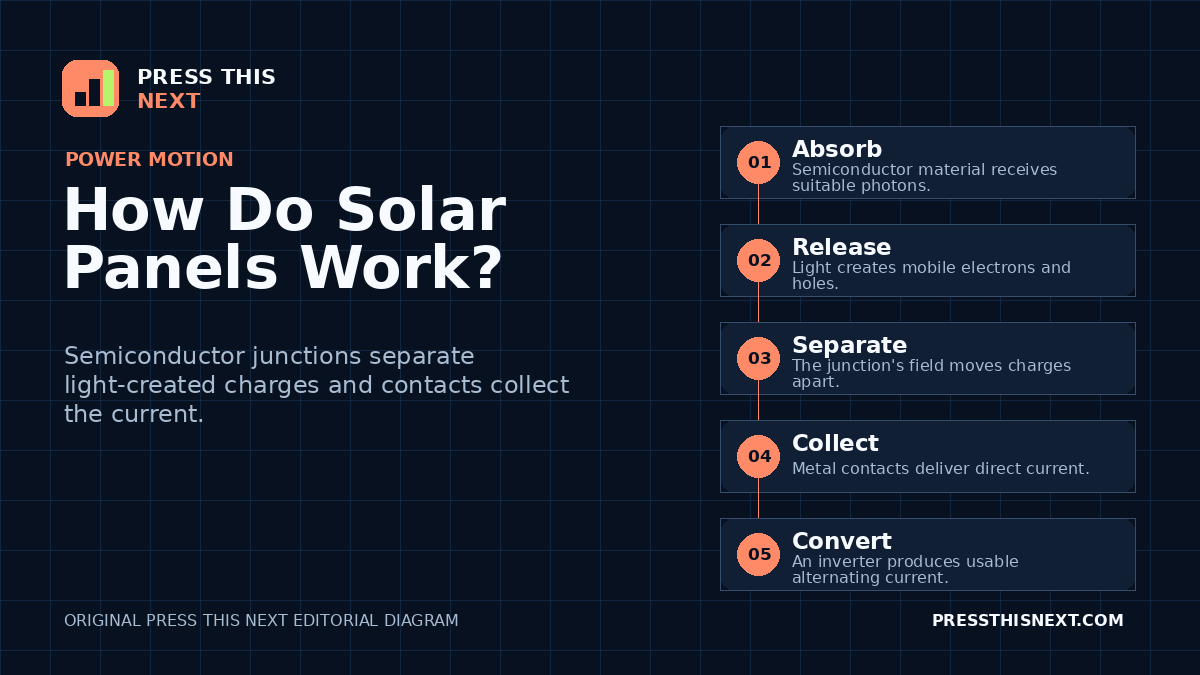

What happens in five steps
1. Photons reach a semiconductor cell
Sunlight arrives in packets of electromagnetic energy called photons. A photovoltaic cell is made from a semiconductor, most commonly crystalline silicon, with electrical properties engineered during manufacturing. Protective glass, encapsulant, a back layer, and a frame help the fragile cells survive outdoors.
2. Absorbed light creates mobile charge carriers
A photon with suitable energy can transfer energy to an electron in the semiconductor. That creates an electron and a corresponding mobile absence of an electron called a hole. Photons with too little energy pass through without creating a useful pair, while energy beyond what is needed is largely lost as heat.
3. An internal electric field separates the charges
Two differently treated semiconductor regions meet at a junction. Diffusion near that boundary establishes an internal electric field. The field favors movement of electrons and holes in opposite directions, reducing the chance that they immediately recombine and helping create a voltage between the cell’s contacts.
4. Contacts collect direct current
Metal fingers on the front and a conductive layer on the back provide paths into an external circuit. When a load completes that circuit, electrons move through the wiring and deliver energy before returning. One cell produces limited voltage and power, so manufacturers connect cells in series and parallel inside a module.
5. Power electronics make the output useful
Modules form strings and arrays. Electronics track a voltage-current operating point that extracts useful power as conditions change. An inverter converts the array’s direct current into synchronized alternating current. Disconnects, protective devices, wiring, mounting, meters, and sometimes batteries complete the system.
A solar cell is not a tiny heat engine
Photovoltaics convert light directly through semiconductor processes; they do not need sunlight to boil a fluid or spin a generator. Solar thermal systems are different: they capture heat for water, buildings, or a power cycle. A PV module can produce electricity on a cold bright day and may perform better electrically when cool than when very hot.
What sets voltage, current, and power?
Light intensity strongly affects available current because more suitable photons can create more charge carriers. Cell design and temperature influence voltage. Electrical power equals voltage multiplied by current, and the relationship changes as the load changes. Maximum-power-point tracking continually adjusts the electronic load so the array operates near its best available point rather than at open circuit or a short circuit.
Where the sunlight goes
No commercial panel converts all incoming solar energy into electricity. Some light reflects, some passes through, some has unsuitable photon energy, and some light-created carriers recombine before collection. Resistance in the cell and wiring causes more loss. Much of the unconverted energy becomes heat, which can raise cell temperature and reduce voltage.
Anti-reflection coatings and textured surfaces help light enter. Better materials, passivation, contact designs, and multi-junction cells reduce particular losses. Laboratory records and consumer-module ratings describe different conditions, so a record cell’s efficiency should not be treated as the output of every installed panel.
What clouds, shade, and angle change
Clouds reduce direct sunlight but leave some diffuse sky light, so panels often continue producing at lower output. Shade on part of a series string can limit more than the shaded area alone; bypass diodes and module-level electronics can reduce certain effects. Orientation, tilt, season, latitude, dust, snow, temperature, and nearby obstructions all change the energy collected over time.
What happens at night?
Without sufficient light, the cells do not deliver normal power. A grid-connected building can draw electricity from the grid, while an off-grid system needs stored energy or another source. A battery does not make the panels produce after sunset; it stores energy previously supplied by the array or another charger.
Why modules last for decades
A PV cell has no rotating mechanism, but the package still experiences ultraviolet light, moisture, heat cycles, wind, and mechanical stress. Encapsulation and controlled manufacturing slow corrosion and material breakdown. Output normally degrades gradually, while inverters and other balance-of-system components may have different service lives.
An electrical safety boundary
Illuminated modules can produce voltage whenever light reaches them, even when a building’s main breaker is off. Series strings can reach dangerous DC voltages, and DC arcs can persist. Roof work also adds fall, structural, and weather hazards. Installation, isolation, fire response, and service must follow applicable codes, product instructions, and qualified professional practice.
The useful mental model
A solar cell is a light-powered charge separator. Photons create mobile carriers, the junction sorts them, contacts collect them, and power electronics turn the resulting DC into electricity that other systems can use.
