An inverter converts direct current into alternating current. Electronic switches connect a DC source in alternating patterns, producing positive and negative voltage pulses. A controller times those switches, filters shape the pulses, and feedback holds the output near its target voltage and frequency. Inverters let batteries and solar panels supply AC equipment, and specialized designs can synchronize safely with the electric grid.

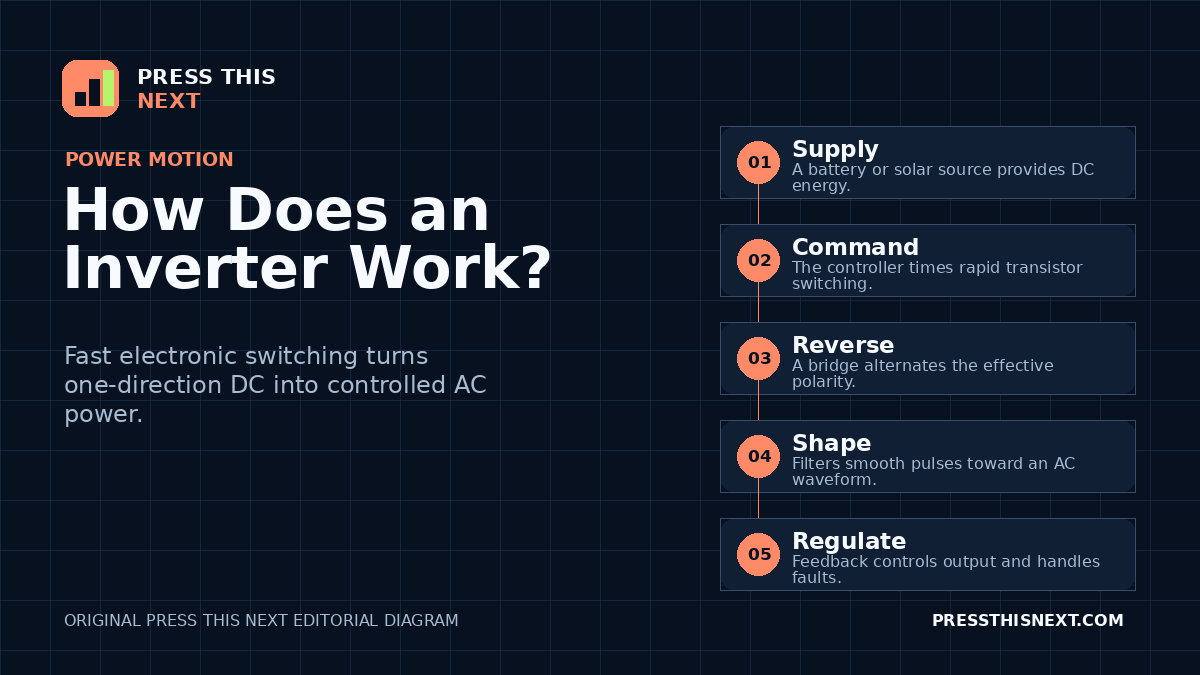

What happens in five steps
1. A DC source supplies energy
The input may come from a battery, solar array, fuel cell, rectified power supply, or high-voltage electric-vehicle pack. DC has a fixed polarity, although its voltage can rise or fall with load and state of charge. Capacitors near the input help support short bursts of current and reduce rapid voltage ripple.
2. A controller plans the switching pattern
A control circuit generates precisely timed signals for power transistors. Instead of mechanically reversing wires, the transistors turn on and off thousands of times per second. The timing commonly uses pulse-width modulation: wider and narrower pulses encode the desired changing output while avoiding a wasteful continuously resistive operating state.
3. Power switches reverse the effective polarity
Transistors arranged in a bridge connect the load first one way and then the other. This produces an alternating waveform from the one-direction DC input. Gate-driver circuits coordinate the devices and prevent switches on the same bridge leg from conducting simultaneously, which would create a destructive short circuit.
4. Filters shape the waveform
The raw bridge output can be a square wave or a rapid sequence of pulses. Inductors and capacitors store and release energy to suppress high-frequency switching components, leaving a smoother AC waveform. A well-designed sine-wave inverter produces voltage suitable for motors, electronics, and other equipment within its ratings.
5. Feedback regulates and protects the output
Sensors measure voltage, current, temperature, and sometimes grid frequency and phase. The controller adjusts switching to hold the target and shuts down or limits output during overload, overheating, short circuit, abnormal input voltage, or an unsafe grid condition. Protection is part of the conversion process, not an optional extra.
What changes from DC to AC
DC moves with one polarity; AC periodically reverses. In North American household systems, utility AC normally repeats 60 cycles per second. The inverter’s transistors switch much faster than that so their average pattern can trace a 60-hertz sine wave. The switching frequency, filter, load, and control method determine how closely the output follows the intended shape.
The inverter does not manufacture energy. Output power comes from the DC source and is slightly lower because the transistors, wiring, magnetic parts, filters, fans, and controller all consume or dissipate some energy.
How a solar inverter finds usable power
A solar panel produces DC whose best operating voltage changes with sunlight and temperature. Many solar inverters include maximum power point tracking, which adjusts electrical loading to find a productive operating point. The inverter then converts that DC into AC. A grid-tied unit must match the grid’s voltage, frequency, and phase before exporting power from the system described in how solar panels work.
How battery inverters can work both ways
Some equipment is bidirectional. During charging, it acts as a rectifier or controlled converter that moves energy from AC into a battery. During discharge, it operates as an inverter and moves stored energy back to AC loads or the grid. The battery-management and power-control systems set current limits based on voltage, temperature, state of charge, and equipment ratings.
Grid-following and grid-forming inverters
A traditional grid-following inverter measures an existing grid waveform and injects current in step with it. It normally stops energizing a disconnected line, an anti-islanding behavior that helps protect workers and equipment. A grid-forming inverter can establish a voltage and frequency reference for an isolated system, but it needs appropriate controls, energy reserves, protection, and coordination with other sources.
Variable-frequency drives and motor control
A variable-frequency drive typically rectifies incoming AC to a DC link and then uses an inverter to create AC at a controlled frequency and voltage. Changing that waveform controls the speed and torque of an electric motor. The same switching principle appears in appliances, pumps, industrial machinery, heat pumps, and electric vehicles, though their controls and ratings differ.
Pure sine, modified sine, and square wave
These labels describe output shape, not a guarantee of overall quality. A square-wave unit switches between levels abruptly. A modified-sine unit adds steps. A pure-sine design uses faster modulation and filtering to approximate utility power. Some loads tolerate rough waveforms; others may hum, run hotter, measure incorrectly, or fail. Equipment manuals and inverter specifications should decide compatibility.
Why watt rating alone is not enough
An inverter must handle continuous power, startup surge, input voltage, output voltage and frequency, ambient temperature, cooling, wiring current, and load waveform. Refrigerators, pumps, compressors, and motors can draw a brief startup current much higher than their running value. Apparent power, power factor, and harmonic current also matter for some loads.
Inverter versus transformer or converter
An inverter changes DC to AC. A rectifier changes AC to DC, while the word converter can cover several DC-to-DC or AC-to-AC functions. A transformer uses changing magnetic flux to alter AC voltage or provide isolation. One product may contain all of these stages, so its label describes the complete purpose rather than every internal component.
Electrical and fire safety
Battery banks and solar strings can deliver dangerous DC current even when AC power is off. An inverter can produce lethal AC voltage, and capacitors may retain charge after shutdown. Use listed equipment, manufacturer-specified overcurrent protection, correct wire sizes, disconnects, ventilation, grounding, and required permits. Grid interconnection and building wiring belong to qualified professionals under local electrical rules.
The useful mental model
Think of an inverter as a high-speed electronic reversing switch with a conductor, a filter, and a referee. The switches chop DC into a planned pattern, the filter smooths it, and the controller continually compares the result with the desired AC waveform while enforcing safe limits.
