Fiber-optic internet carries digital information as controlled light through very thin strands of glass. A transmitter converts an electrical data signal into optical pulses, the fiber guides that light over distance, and a receiver converts the arriving signal back into electrical data. In a fiber-to-the-home connection, an optical network terminal at the premises provides the handoff to a router and the local network.

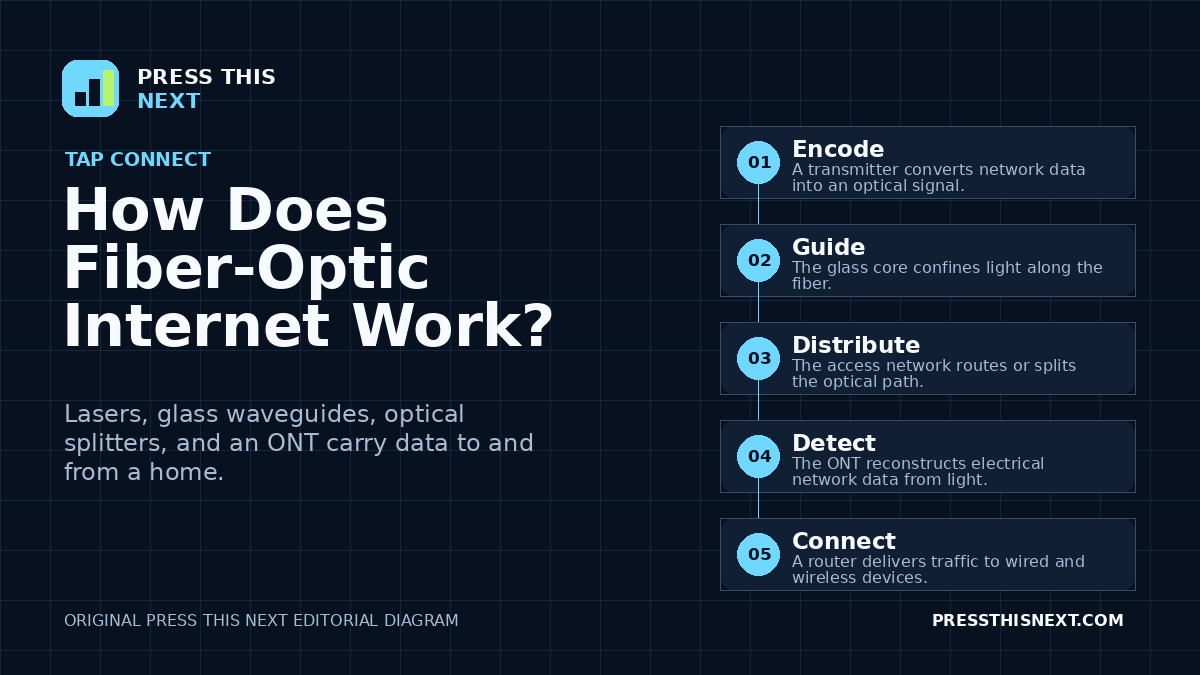

What happens in five steps
1. Network data drives an optical transmitter
Internet traffic begins as electrical signals inside networking equipment. A laser or light-emitting device varies its optical output according to an encoding scheme, creating a rapid pattern that represents data. The system is more sophisticated than simply turning a flashlight on for one and off for zero: timing, wavelength, modulation, framing, and error controls allow receivers to distinguish a high-rate signal reliably.
2. The fiber keeps most light in its core
An optical fiber has a central glass core surrounded by cladding with a different refractive index. That structure guides supported modes of light along the core and limits leakage into the surroundings. Bends, imperfect connections, impurities, and microscopic scattering still cause attenuation, so network design sets limits on distance and optical loss. Protective coating, strength members, and cable jackets shield the hair-thin glass from handling and the environment.
3. The access network distributes the signal
A provider’s optical line terminal connects customer access fibers to the wider network. Many residential deployments use a passive optical network in which unpowered optical splitters divide downstream light among multiple premises and combine upstream paths. Scheduling and addressing let the system separate customer traffic. Other fiber designs use different topologies, wavelengths, or active equipment, so one neighborhood’s architecture should not be assumed everywhere.
4. An ONT detects and converts the light
At the home or building, a photodetector in the optical network terminal responds to the arriving light. Receiver electronics reconstruct the encoded data, perform protocol checks, and expose interfaces such as Ethernet. The ONT also turns upstream electrical data into an optical signal for the return path. It fills the provider-boundary role that a modem performs on cable or DSL, although the technologies and terminology are different.
5. The router serves local devices
The ONT normally hands IP traffic to a router. The router forwards packets, applies local policy, and provides wired or wireless connectivity. The final device may use Ethernet or Wi-Fi, so a fast optical service can still feel slow when the local radio link is congested, distant, or obstructed. Fiber improves the provider access path; it does not remove every later bottleneck.
Light does not travel through an empty pipe
The glass itself is the transmission medium. Its optical properties confine and guide the light, while attenuation gradually reduces signal strength. The common classroom phrase total internal reflection is useful, but real communication fibers are analyzed as waveguides with supported modes. The practical result is that a well-designed fiber carries optical information with low loss and very high bandwidth while remaining sensitive to connector contamination and excessive bending.
How upload and download light share the network
Fiber systems can separate directions by time, wavelength, distinct fibers, or a combination. In many passive optical networks, downstream data is broadcast optically through splitters while the ONT accepts only traffic intended for it. Upstream transmissions are coordinated so multiple ONTs do not talk over one another. Different optical wavelengths may carry the two directions. This organization is why the equipment at both ends must support the same access standard and provider configuration.
Why fiber can provide high speed and low latency
Optical fiber supports wide signaling bandwidth and typically has low attenuation, so providers can carry large data rates over long distances without the same electrical-frequency constraints as older copper access lines. Latency, however, is more than the propagation time of light. Scheduling, queueing, routing distance, congestion, application servers, and local Wi-Fi all add delay. Fiber can remove an important access bottleneck without making every request instantaneous.
Is residential fiber shared?
Often, yes. A passive optical network can use a splitter tree so several premises share capacity toward the provider’s optical line terminal. Sharing does not mean every customer receives every other’s readable traffic; protocols identify and protect customer data. It does mean that network engineering and service policies determine how capacity is allocated. Dedicated point-to-point fiber also exists, especially in some business and institutional networks.
Fiber and wireless are complementary
A 5G connection uses radio for the last link to a device, while fiber uses guided light. Mobile base stations, Wi-Fi networks, and data centers frequently rely on fiber for backhaul even when the user connects wirelessly. Fiber is difficult to beat for stable fixed capacity, while wireless provides mobility and avoids running a strand to every moving device. A modern network often uses both rather than choosing one for every segment.
Why a fiber connection can still be slow
A service plan can cap throughput, and an older router, 100-megabit Ethernet port, damaged patch cord, weak Wi-Fi signal, busy server, or congested route can be slower than the optical link. A speed test also depends on the test server, device, protocol overhead, and concurrent traffic. Testing one suitable computer over a known gigabit-or-faster wired connection helps separate the access service from local radio performance.
Fiber safety and handling boundaries
Never look into a fiber connector or port; invisible optical power can be hazardous and cannot be judged by eye. Do not touch connector ends or attempt improvised cleaning, splicing, or bending. Broken fiber can produce tiny glass splinters. Leave provider-side optical work to trained technicians, keep the ONT powered and ventilated as instructed, and contact the provider when an optical alarm remains active.
The useful mental model
Picture a carefully controlled chain: electrical data drives light, engineered glass guides it, network splitters and terminals direct the shared access path, and a detector reconstructs the data at the home. The ONT finishes the optical link, the router directs packets, and Ethernet or Wi-Fi completes the final connection. Fiber is the fast road, not the entire journey.
