A modem is the boundary device that makes data from your home network compatible with an internet provider’s access system. It receives the signal carried by cable, a telephone pair, or another access medium, recovers the digital information, and presents a network connection to a router or computer. In the other direction, it prepares outgoing data for the provider’s line. A fiber connection normally uses an optical network terminal, or ONT, for a closely related boundary role rather than a traditional modem.

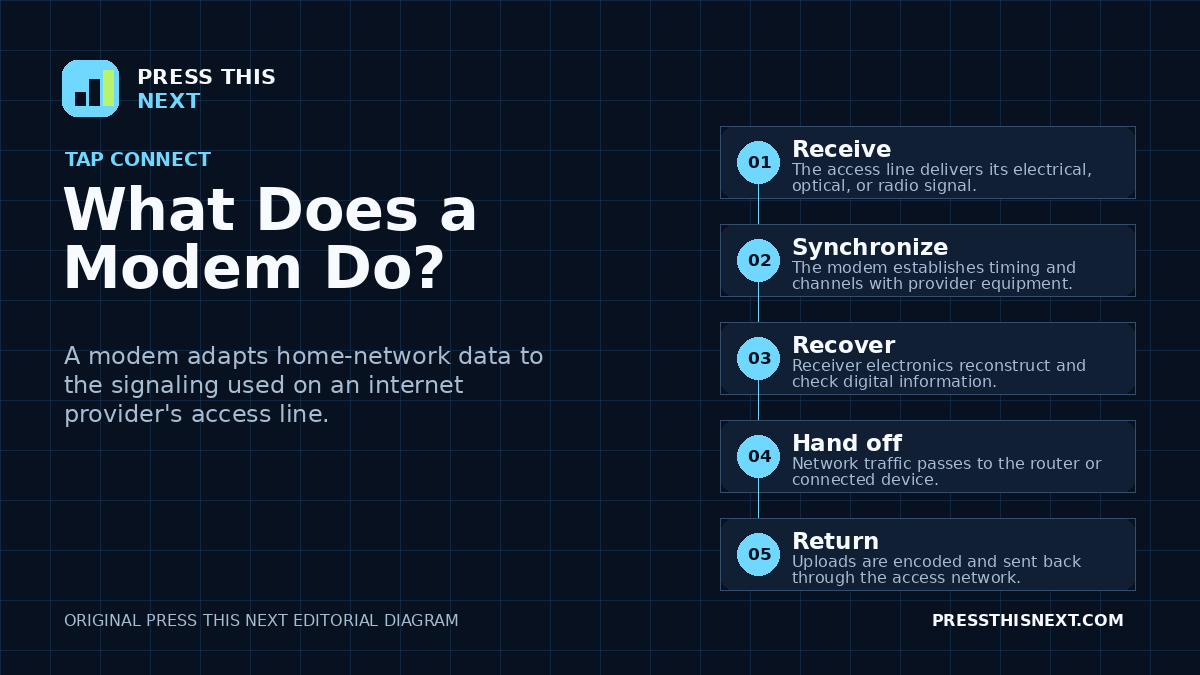

What happens in five steps
1. The modem receives the provider’s physical signal
The outside line carries information in a form designed for its medium. A cable network uses radio-frequency signals over coaxial cable, while DSL uses electrical signaling over a telephone pair. Fixed wireless service uses radio through an antenna. The modem’s physical interface is built for one of these systems; a cable modem cannot simply be moved to a DSL line because their connectors, frequencies, protocols, and provider equipment differ.
2. It synchronizes with equipment at the provider
Before ordinary internet traffic can flow, the modem finds the correct downstream signal, establishes timing, identifies usable upstream channels, and communicates with matching equipment in the provider’s network. A cable modem works with a cable modem termination system. A DSL modem works with provider-side DSL equipment. Synchronization proves that the two ends can exchange physical-layer information, but it does not by itself prove that an account is authorized or that the wider internet is reachable.
3. It recovers and checks digital data
The arriving waveform represents encoded digital information. Receiver electronics measure the signal and reconstruct bits, while error-detection mechanisms identify damaged transmissions. Depending on the access technology, the modem may equalize distortion, select among many carriers, adapt modulation, or request retransmission through higher layers. The important idea is not that analog becomes digital only once; modern links use carefully modulated waveforms to carry digital data in both directions.
4. It hands network traffic to the local side
Most stand-alone home modems expose Ethernet to a separate router. The modem terminates the provider’s access link, while the router forwards IP packets between the provider-facing connection and the home network. A gateway combines those roles in one enclosure and may also include an Ethernet switch, firewall, and Wi-Fi access point. Combining hardware does not make the underlying jobs identical.
5. It prepares uploads for the return path
Traffic is two-way. When a device sends data, the router delivers packets to the modem or gateway. The modem schedules or encodes them according to the access system and transmits them toward the provider. Cable systems commonly allocate different frequency regions and capacity to downstream and upstream traffic. The provider then forwards the traffic into its routed network and eventually toward the requested service.
A modem and a router solve different problems
The modem speaks the provider’s access technology. The router decides where IP packets should go between networks. Wi-Fi supplies a local radio link, and Ethernet supplies a local wired link. A single consumer gateway can perform all four functions, which is why the words are often mixed in conversation. A useful diagnostic question is whether a device has lost its local Wi-Fi link, its route to the gateway, the modem’s provider synchronization, or service beyond the provider. These failures can look similar to a person opening a web page but occur at different boundaries.
Why fiber often uses an ONT instead
Fiber-to-the-home service carries light to an optical network terminal. The ONT converts between optical access-network signals and interfaces such as Ethernet, telephone, or television service. People may casually call it a fiber modem, but ONT is the more precise term for many passive optical networks. The distinction matters when buying equipment: a retail cable modem will not replace a provider-provisioned ONT, and optical connectors should never be treated as ordinary electrical plugs.
What the status lights can and cannot tell you
Labels vary, but common indicators represent power, downstream synchronization, upstream synchronization, online registration, and local Ethernet activity. A steady online light can show that the access session is established, yet DNS, routing, account, or remote-service problems can still prevent a page from loading. Conversely, a flashing activity light usually means frames are moving; it is not a measure of useful speed or proof that every packet succeeded. The device manual and provider documentation define the exact meanings.
Why a newer modem may not increase speed
Maximum performance is limited by the slowest relevant part of the path: the subscribed service tier, access-network capacity, signal quality, modem specification, Ethernet port, router, Wi-Fi link, remote server, and congestion can all matter. Replacing an obsolete modem can remove one bottleneck, but it cannot create capacity above the provider plan. Advertised physical-link rates also include protocol overhead and are not a promise that one application will continuously receive that number.
What restarting a modem actually does
Restarting removes power, clears volatile state, and forces the device to reacquire and register on the provider network. That can recover from a temporary synchronization or software fault. It does not repair a damaged cable, low signal caused by the outside plant, an account problem, an outage, or unsupported hardware. If restarts are repeatedly necessary, record the light pattern and times, check approved cables and ventilation, and ask the provider to inspect line measurements rather than treating rebooting as a permanent solution.
Why devices can stay connected when the modem is offline
Your phone can remain associated with the local Wi-Fi access point while the provider-facing link has failed. The local network may still reach printers, storage, or the router’s administration page. This separation is the central reason a device can report connected without internet. The Wi-Fi icon describes a local radio relationship, not successful communication through the modem and every later network.
Safety and security boundaries
Use only the specified power adapter, keep ventilation openings clear, and replace visibly damaged power or coaxial cables through the provider or a qualified technician. Do not open a modem; internal power components are not user-serviceable. During thunderstorms, follow local electrical-safety guidance rather than handling outdoor or building-entry cabling. For security, keep a combined gateway’s firmware supported, change default administration credentials, and disable remote management unless it is specifically secured and needed.
The useful mental model
Think of the modem as an interpreter at the edge of two systems. On one side is the provider’s specialized access signal; on the other is ordinary local networking. The modem establishes the physical conversation and translates its signaling, while the router chooses packet paths and Wi-Fi or Ethernet connects individual devices. Keeping those roles separate makes equipment choices and troubleshooting much clearer.
