How Does Wi-Fi Work?

Wi-Fi works by turning network data into radio signals that nearby compatible devices can exchange under the IEEE 802.11 family of rules. In a typical home, a wireless access point coordinates use of a shared radio channel and bridges accepted traffic to the wired local network and, through a router and modem or fiber terminal, to an internet provider.

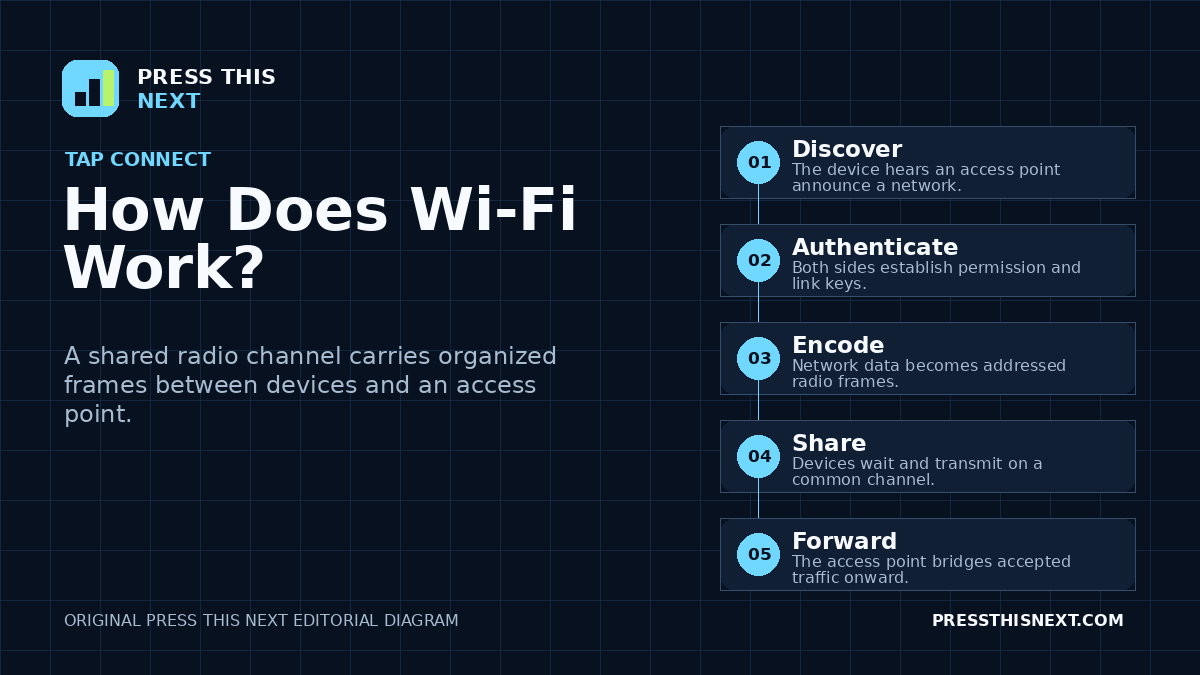

What happens in five steps

1. An access point announces a network

The access point periodically transmits management frames describing a wireless network. These frames can include the network name, supported capabilities, timing information, and security options. A hidden network suppresses some convenient advertising, but it does not make the radio traffic invisible or replace encryption.

2. A device chooses and authenticates

A phone or computer scans usable channels, compares available networks, and asks to join one. On a protected personal network, credentials help the access point and device establish cryptographic keys. The password is not simply attached to every later message; supported security protocols use it as part of a controlled authentication and key-derivation process.

3. Data becomes addressed wireless frames

An application produces data, which networking software divides and labels through several protocol layers. The Wi-Fi interface wraps local portions into 802.11 frames with addresses and control information. Electronics encode the bits by changing properties of radio-frequency carriers. Modern versions can use multiple antennas and many closely spaced subcarriers to move more data through the same environment.

4. Devices take turns on a shared channel

Wi-Fi is not a private wire through the air. Devices on one channel generally listen before transmitting and wait a randomized interval when the channel is busy. Frames can be acknowledged, and missing frames can be retransmitted. This coordination reduces collisions but cannot eliminate interference or make every device transmit at once.

5. The access point forwards the traffic

The access point receives a valid encrypted frame, processes the local wireless link, and forwards its contents toward the correct local device or router. Return data follows the reverse path. Encryption on the Wi-Fi link protects that radio hop; HTTPS or another end-to-end protocol separately protects data farther across the internet.

Bands, channels, and speed

Common Wi-Fi operates in license-exempt portions of the 2.4, 5, and, where authorized, 6 gigahertz bands. A band contains channels, and a channel can occupy different widths. Wider channels can carry more data under good conditions but consume more spectrum and may face more competition. The precise channels and power limits depend on national rules and the equipment’s regulatory configuration.

The number printed on a router box is a theoretical link rate across particular conditions, not a promised internet speed. Real throughput loses capacity to coordination, headers, acknowledgments, retransmissions, encryption, other users, and the slower of the wireless link and internet connection. Latency and stability can matter more than peak rate for calls or games.

Why range has limits

Radio energy spreads as it travels. Walls, floors, metal, water-rich materials, furniture, and people absorb or reflect part of it. Higher-frequency links often offer wide channels but typically have more difficulty crossing the same obstacles. Reflections can harm a simple link, yet modern multiple-antenna systems can also exploit different paths. Placement high and open is usually more useful than hiding an access point in a metal cabinet.

Wi-Fi is not the internet

A device can show a strong Wi-Fi connection while the provider link is down. That means the local radio link to the access point works, not that every remote service is reachable. Conversely, a phone can reach the internet through cellular data with Wi-Fi disabled. The access technology and the wider network service are separate layers.

What mesh systems and repeaters change

A second wireless node does not amplify internet service by magic. It creates another radio link and a new place for clients to connect. A wired backhaul can carry traffic between nodes without using client airtime. A wireless backhaul must share radio capacity unless the system has a suitable separate link, so placement requires a compromise: the remote node needs a good connection to both users and the rest of the network. Network names can be coordinated, but a phone or laptop still participates in deciding when to roam. More nodes can improve coverage; badly placed or overly numerous nodes can add interference.

A practical security boundary

Use the strongest mutually supported security mode, a unique administrator password, current firmware, and a long network passphrase. Avoid obsolete security options. Treat open public Wi-Fi as untrusted, prefer services protected by HTTPS, verify the exact network name, and disable automatic joining when it creates unnecessary exposure. A familiar-looking name does not prove who operates an access point.

The useful mental model

Picture a polite conversation in a shared room. Each participant identifies the network, waits for an opening, speaks in an agreed radio language, and repeats a sentence if no acknowledgment arrives. The access point is both coordinator and doorway to other networks.
