LiDAR, short for light detection and ranging, is an active sensing method that measures distance with light. An instrument sends controlled laser pulses, detects a portion reflected from a surface, and uses the round-trip travel time to calculate range. Repeating that measurement across many directions can produce a detailed three-dimensional set of points.

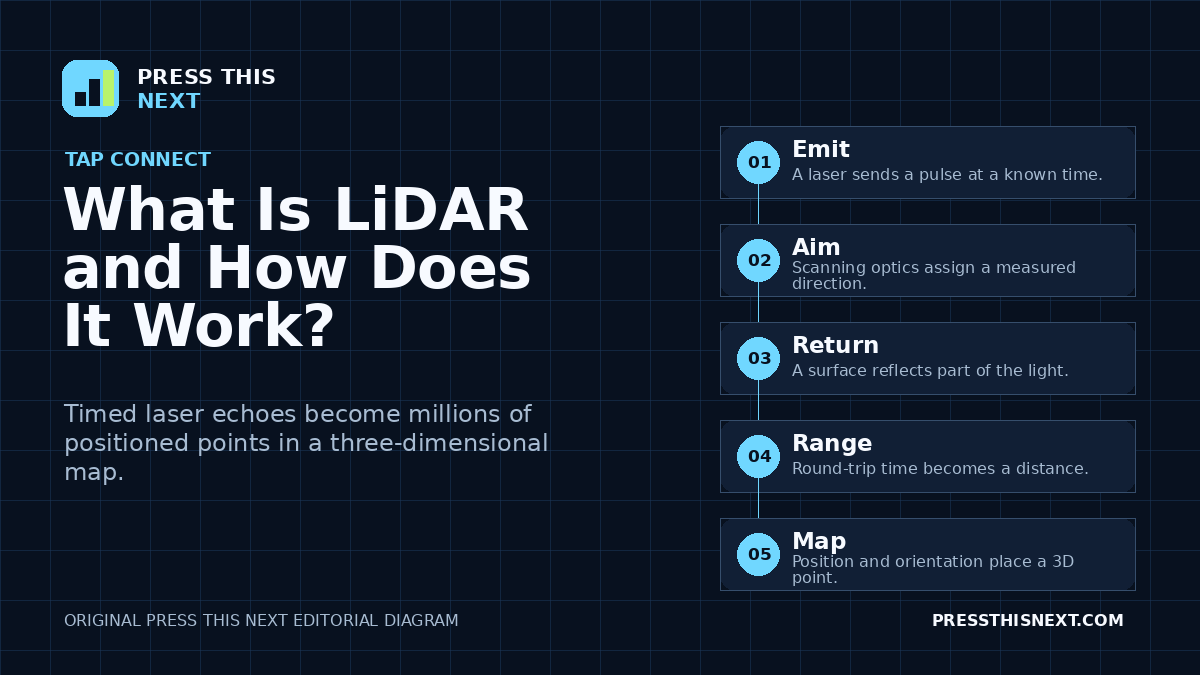

What happens in five steps
1. A laser emits a short pulse
The transmitter produces a pulse at a known moment and wavelength. Topographic mapping systems commonly use near-infrared light, while some bathymetric systems use green light that can penetrate clear water more effectively. Eye-safety class, power, pulse rate, and wavelength are design choices, not properties shared by every LiDAR device.
2. Optics aim the light across a scene
A scanner, rotating assembly, mirror, or fixed array directs pulses along known angles. A mapping aircraft covers strips of terrain as it moves. A vehicle sensor surveys successive directions around the road. A stationary instrument can scan a building or atmosphere. The instrument must know the direction associated with each measurement.
3. Surfaces return part of the energy
When light encounters vegetation, soil, water, a wall, dust, or another target, some energy is absorbed, some travels elsewhere, and some returns toward the receiver. A single outgoing pulse may create several returns: the first from a treetop, later ones from branches, and a final one from the ground, for example.
4. Timing becomes range
The receiver records when the return arrives. Distance is approximately the speed of light multiplied by elapsed time and divided by two, because the pulse traveled out and back. Electronics must distinguish weak returns from background light and noise. Some systems instead compare the phase or frequency of continuously modulated light, but the same goal is an accurate range.
5. Position and direction create a point cloud
Software combines each range with the beam angle and the sensor’s position and orientation. Airborne mapping commonly integrates satellite navigation and an inertial measurement unit. The resulting points receive x, y, and z coordinates. Calibration, classification, and quality checks then turn the raw cloud into elevation models, contours, canopy estimates, or object maps.
What a LiDAR point represents
A point is a measured return, not a tiny photograph pixel. Its location describes where the system estimated that reflected light originated. A point may also include intensity, return number, scan angle, time, or classification. Color can be added later from a camera, but LiDAR does not need ambient illumination because it supplies its own light.
Point density is not the same as accuracy. A dense cloud can contain many consistently biased points if timing, orientation, or calibration is wrong. Conversely, a lower-density survey can meet an application’s accuracy need. Professional specifications separate concepts such as absolute accuracy, relative accuracy, point spacing, and data completeness.
Where LiDAR is used
Survey programs use airborne LiDAR to map coastlines, floodplains, forests, buildings, and terrain hidden partly by vegetation. Atmospheric instruments analyze aerosols, clouds, or gases from returned light. Robots and vehicles use shorter-range systems to detect geometry and obstacles. Phones or tablets may use compact depth sensors for focusing, measurement, room scanning, or effects, with capabilities that differ from survey equipment.
What can make a measurement difficult
Dark or absorbent surfaces may return little energy. Shiny surfaces can direct the reflection away from the receiver. Glass, water, rain, fog, snow, dust, and intense sunlight can create missing, mixed, or noisy returns. A beam has finite width, so one pulse can strike more than one surface at an edge. Moving objects distort a scan assembled over time.
LiDAR also cannot see through every obstacle. Some pulses can pass through gaps in leaves, but the laser does not magically pass through solid foliage, walls, or opaque ground. Bathymetric performance depends on water clarity, depth, surface conditions, and bottom reflectivity.
How LiDAR differs from a camera
A conventional camera records the amount and color of light arriving along image directions, then estimates depth only when geometry, focus, motion, or multiple views provide clues. LiDAR measures a range directly for each successful return. Cameras can provide rich texture and color at high resolution; LiDAR can provide reliable geometry where visible texture is weak. Neither sensor is universally better. Mapping and robotic systems often combine them because one measurement can qualify the other. Alignment between sensors must itself be calibrated, and a colorful point cloud may visually hide gaps or uncertainty in the underlying ranges.
A laser safety boundary
Commercial sensors should be operated within their certified laser class and instructions. Do not open an enclosure, defeat interlocks, stare into an aperture, or improvise repairs. Invisible infrared light does not trigger a reliable blink response. Specialized survey and industrial lasers require trained operators and controlled procedures.
The useful mental model
LiDAR is an echo map made with light. Each pulse asks one direction how far away a reflecting surface is. Precise timing answers the range, scanning supplies the directions, and position data places millions of answers into one three-dimensional coordinate system.
